# | 文件名称 | 文件大小 |
---|---|---|
1 | 1 - TROLLEY WHEEL.ipt | 260 KB |
2 | 10 - 7-8 x 8 1-4 HEX HD BOLT.ipt | 211 KB |
3 | 11 - 7-8 SLOTTED HEX NUT.ipt | 239 KB |
4 | 12 - 7-8 PLAIN WASHER.ipt | 103 KB |
5 | 13 - 5-32 x 1 1-2 COTTER PIN.ipt | 169 KB |
6 | 14 - NO 10 x 5-8 ROUND HEAD MACH SCREW.ipt | 267 KB |
7 | 14-78 TROLLEY.iam | 120 KB |

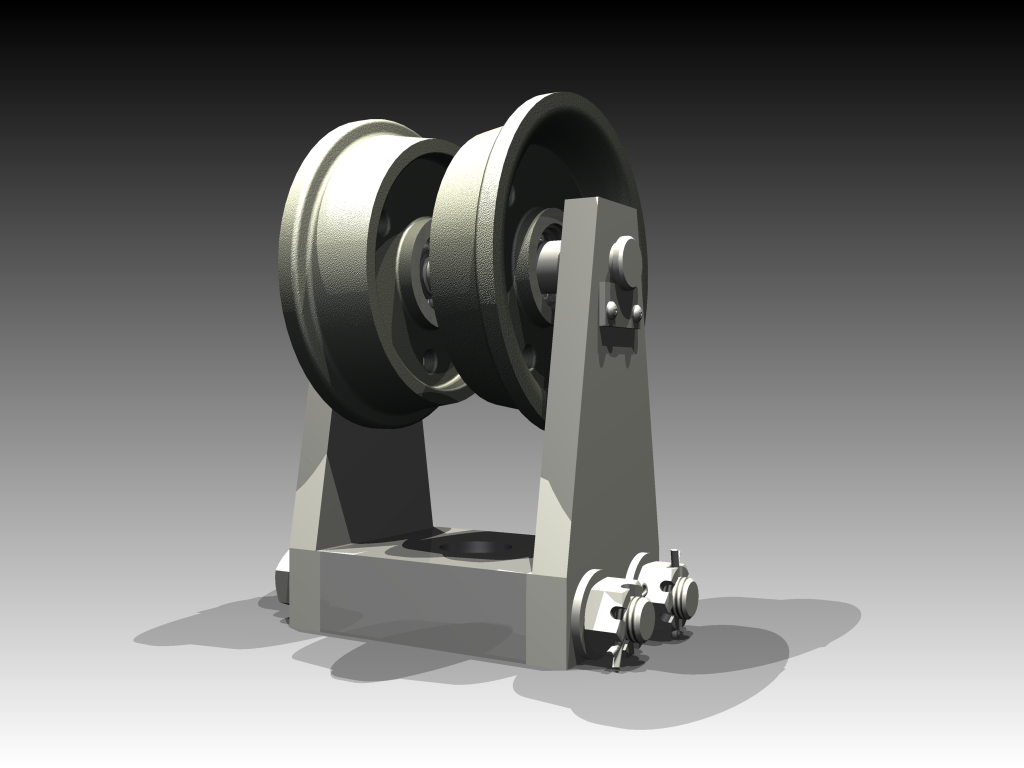

8 | 14-78 Trolley.png | 204 KB |
9 | 1741157355308895.zip | 2.53 MB |
10 | 2 - SIDE PLATE.ipt | 107 KB |
11 | 3 - CROSS HEAD.ipt | 102 KB |
12 | 4 - AXLE.ipt | 130 KB |
13 | 5 - ADJUSTINIG SHIM.ipt | 81 KB |
14 | 6 - KEEPER PLATE.ipt | 78.5 KB |
15 | 7 - BALL BEARING.ipt | 200 KB |
16 | 8 - AXLE SNAP RING.ipt | 82.5 KB |
17 | 9 - WHEEL SNAP RING.ipt | 82 KB |
18 | BOLT ASSEMBLY.iam | 76 KB |
19 | TROLLEY WHEEL ASEEMBLY.iam | 81 KB |
