滚珠轴承门铰链（ID:696617）
| # | 文件名称 | 文件大小 |
|---|---|---|

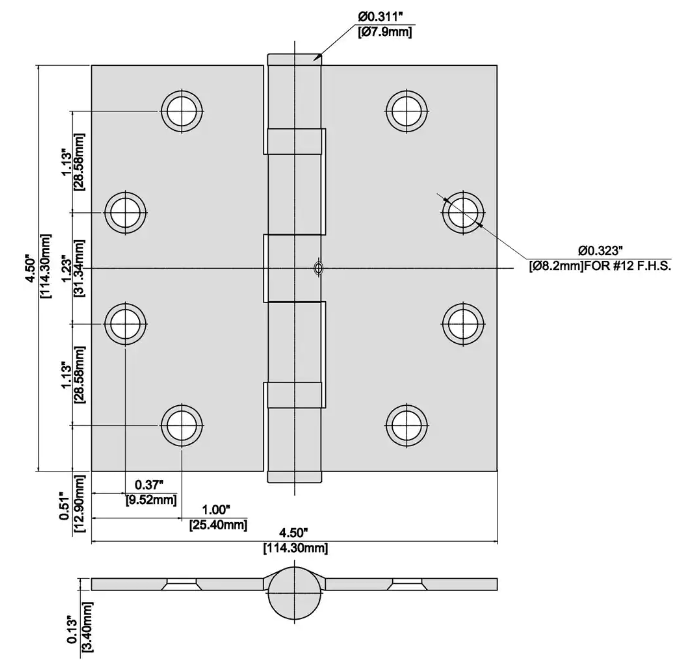

| 1 | Ball Bearing Door Hinge, Basic Dimensions.PNG | 84.6 KB |

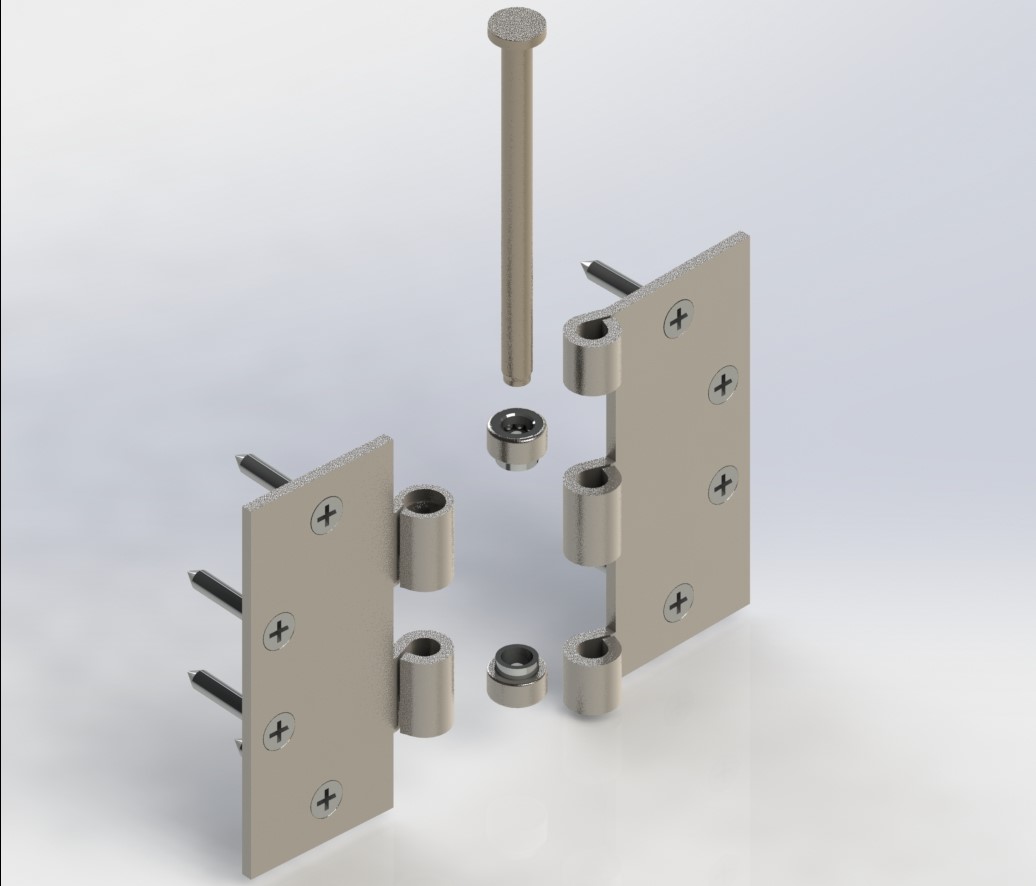

| 2 | Ball Bearing Door Hinge, Exploded View.JPG | 76.2 KB |

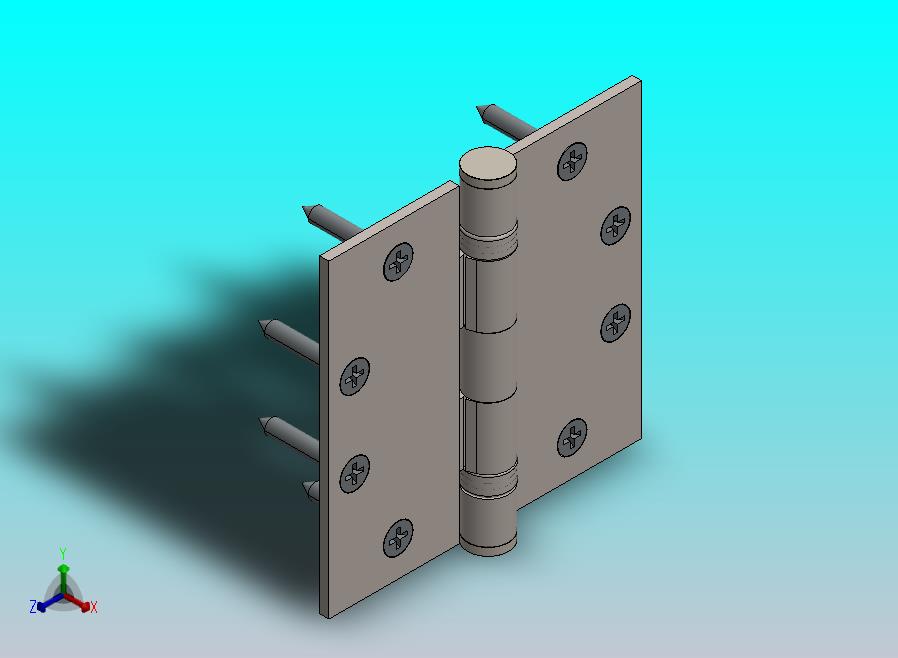

| 3 | Ball Bearing Door Hinge.JPG | 91.8 KB |
| 4 | Ball Bearing Door Hinge.SLDASM | 436 KB |
| 5 | Ball Bearing Door Hinge.STEP | 583 KB |
| 6 | Ball Bearing Door Hinge.x_b | 107 KB |
| 7 | Bearing Ball, Ball Bearing Door Hinge.SLDPRT | 175 KB |
| 8 | Bearing Bottom Racer, Ball Bearing Door Hinge.SLDPRT | 246 KB |
| 9 | Bearing Outer Ring, Ball Bearing Door Hinge.SLDPRT | 167 KB |
| 10 | Bearing Subassy, Ball Bearing Door Hinge.SLDASM | 282 KB |
| 11 | Bearing Top Seal, Ball Bearing Door Hinge.SLDPRT | 118 KB |
| 12 | Bottom Pin, Ball Bearing Door Hinge.SLDPRT | 112 KB |

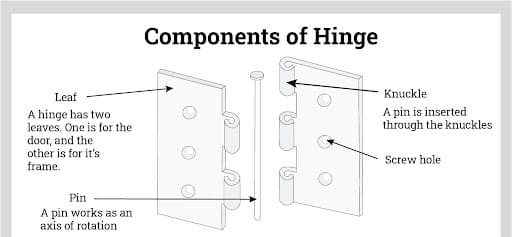

| 13 | Components of Door Hinge.jpg | 44.2 KB |
| 14 | Description.txt | 1.15 KB |
| 15 | Door Frame Leaf, Ball Bearing Door Hinge.SLDPRT | 154 KB |
| 16 | Door Leaf, Ball Bearing Door Hinge.SLDPRT | 273 KB |
| 17 | M5.5 x 30, Wood Screw, Ball Bearing Door Hinge.SLDPRT | 93.1 KB |
| 18 | Pin, Ball Bearing Door Hinge.SLDPRT | 77.3 KB |
免责申明:
本网站模型由用户自行上传，如权利人发现存在误传其作品情形，请及时与本站联系。
立即下载
此图纸下载需要10金币
图纸ID：696617
文件大小：3.13M
软件版本：SOLIDWORKS 2018,STEP
图纸格式：sldasm,step,sldprt
参数/编辑：可修改，包括参数
上传时间：2025-03-11
图纸介绍：
