26位圆形连接器插头，带母插座。IT佳能生产的数码钥匙零件号KPSE08F16-26S。也通过PEI-Genesis发行。与Amphenol 26针插头插座配合_SOLIDWORKS 2018,STEP_模型图纸下载

首页

图库

课设毕设

资料库

工程师

26位圆形连接器插头，带母插座。IT佳能生产的数码钥匙零件号KPSE08F16-26S。也通过PEI-Genesis发行。与Amphenol 26针插头插座配合（ID:700190）

平面图

3D视图

文件列表

屿双网

屿双网

#	文件名称	文件大小
1	26 PIN CONTACT PRINCIPLE.png	107 KB

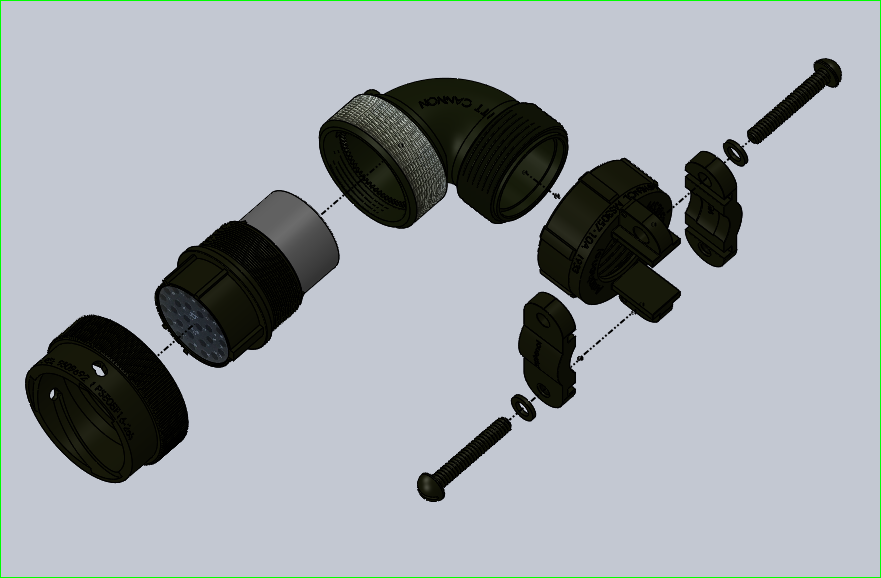

2	26 PIN FEMALE CONECTOR ASSY EXPLODED.png	136 KB

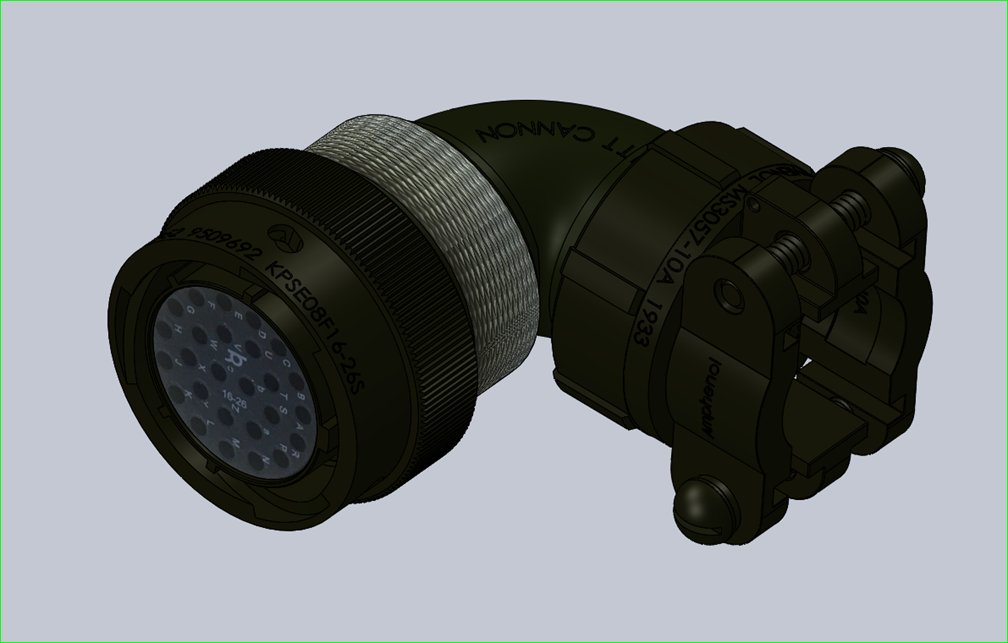

3	26 PIN FEMALE CONECTOR ASSY PIC 1.png	364 KB

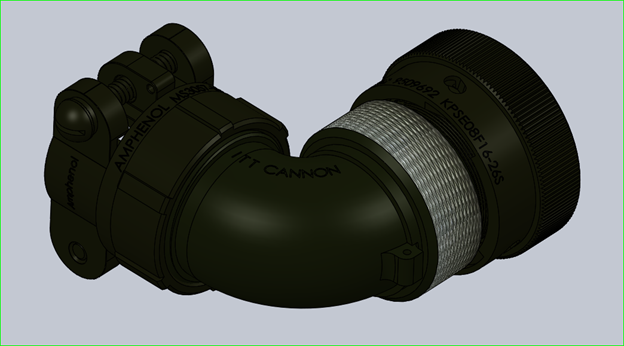

4	26 PIN FEMALE CONECTOR ASSY PIC 2.png	149 KB
5	26 PIN FEMALE CONECTOR ASSY PIC 3.png	103 KB
6	26 PIN FEMALE CONECTOR ASSY PIC 4.png	1.38 MB
7	26 PIN FEMALE CONECTOR ASSY PIC 5.png	1.22 MB
8	26 PIN FEMALE CONECTOR ASSY.SLDASM	2.91 MB
9	26 PIN FEMALE CONECTOR ASSY.STEP	11.2 MB
10	26 PIN, FEMALE CONECTOR, VENDOR IMAGE.png	113 KB
11	6-32 x .875 ROUND HEAD SLOTTED MACHINE SCREW OD GREEN PIC.png	76.8 KB
12	6-32 x .875 ROUND HEAD SLOTTED MACHINE SCREW OD GREEN.SLDPRT	1.06 MB
13	6-32 x .875 ROUND HEAD SLOTTED MACHINE SCREW OD GREEN.STEP	874 KB
14	BOTTOM PIN HOLE LAYOUT PIC.png	538 KB

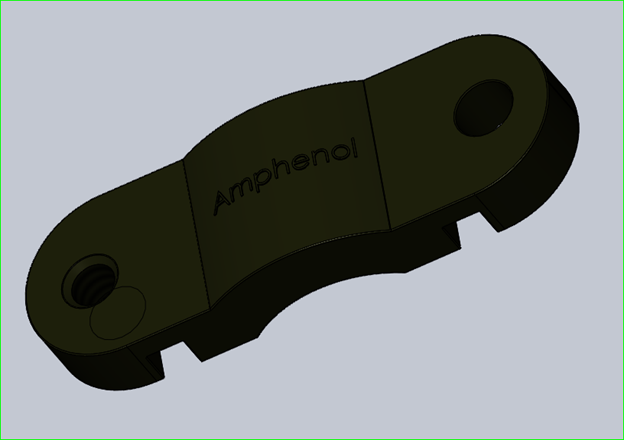

15	COLLAR BRACKET PIC.png	53.7 KB
16	COLLAR BRACKET.SLDPRT	706 KB
17	COLLAR BRACKET.STEP	1.29 MB
18	COLLAR PIC.png	71.8 KB
19	COLLAR.SLDPRT	1.7 MB
20	COLLAR.STEP	4.51 MB

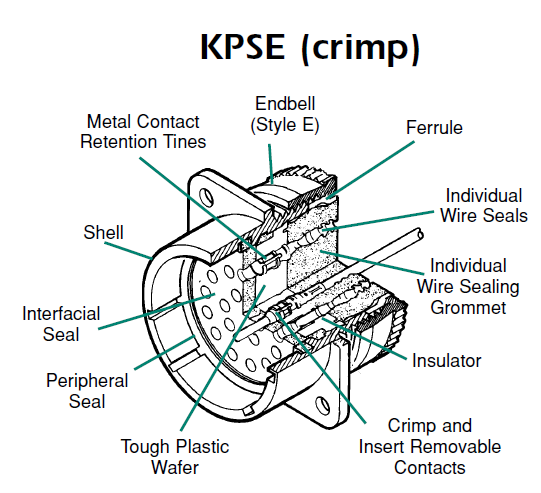

21	CRIMP VIEW.png	68.5 KB
22	ELBOW PIC.png	138 KB
23	ELBOW SLICED PIC.png	104 KB
24	ELBOW.SLDPRT	1.01 MB
25	ELBOW.STEP	1.53 MB
26	INNER PLUG PIC.png	245 KB
27	INNER PLUG.SLDPRT	1.05 MB
28	INNER PLUG.STEP	571 KB
29	KNURL FACE PIC.jpg	119 KB
30	KNURLED 3 HOLE COLLET PIC.png	116 KB
31	KNURLED 3 HOLE COLLET.SLDPRT	1.29 MB
32	KNURLED 3 HOLE COLLET.STEP	2.28 MB

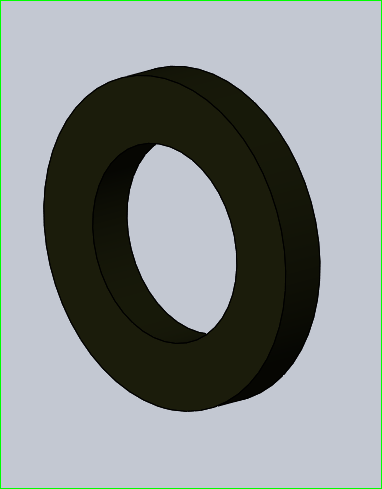

33	SS FLAT WASHER OD GREEN PIC.png	9.74 KB
34	SS FLAT WASHER OD GREEN.SLDPRT	72.3 KB
35	SS FLAT WASHER OD GREEN.STEP	10.8 KB
36	TOP PIN HOLE LAYOUT PIC.png	460 KB
