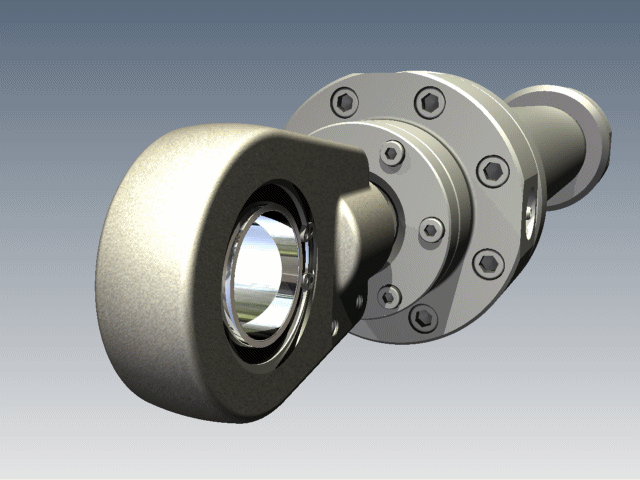

900-1400毫米气缸(500冲程)（ID:706610）
85
0
0
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 8 mm Ball.ipt | 101 KB |
| 2 | Bleed Screw -SA L2.iam | 75.5 KB |
| 3 | Bleed Screw.ipt | 150 KB |
| 4 | Compress Spring1.ipt | 499 KB |
| 5 | Cushioning Screw - SA L2.iam | 72.5 KB |
| 6 | Cushioning Screw Taper.ipt | 115 KB |
| 7 | Cushioning Screw.ipt | 150 KB |
| 8 | Cylinder Assembly -Working -Section Animation.wmv | 1.02 MB |

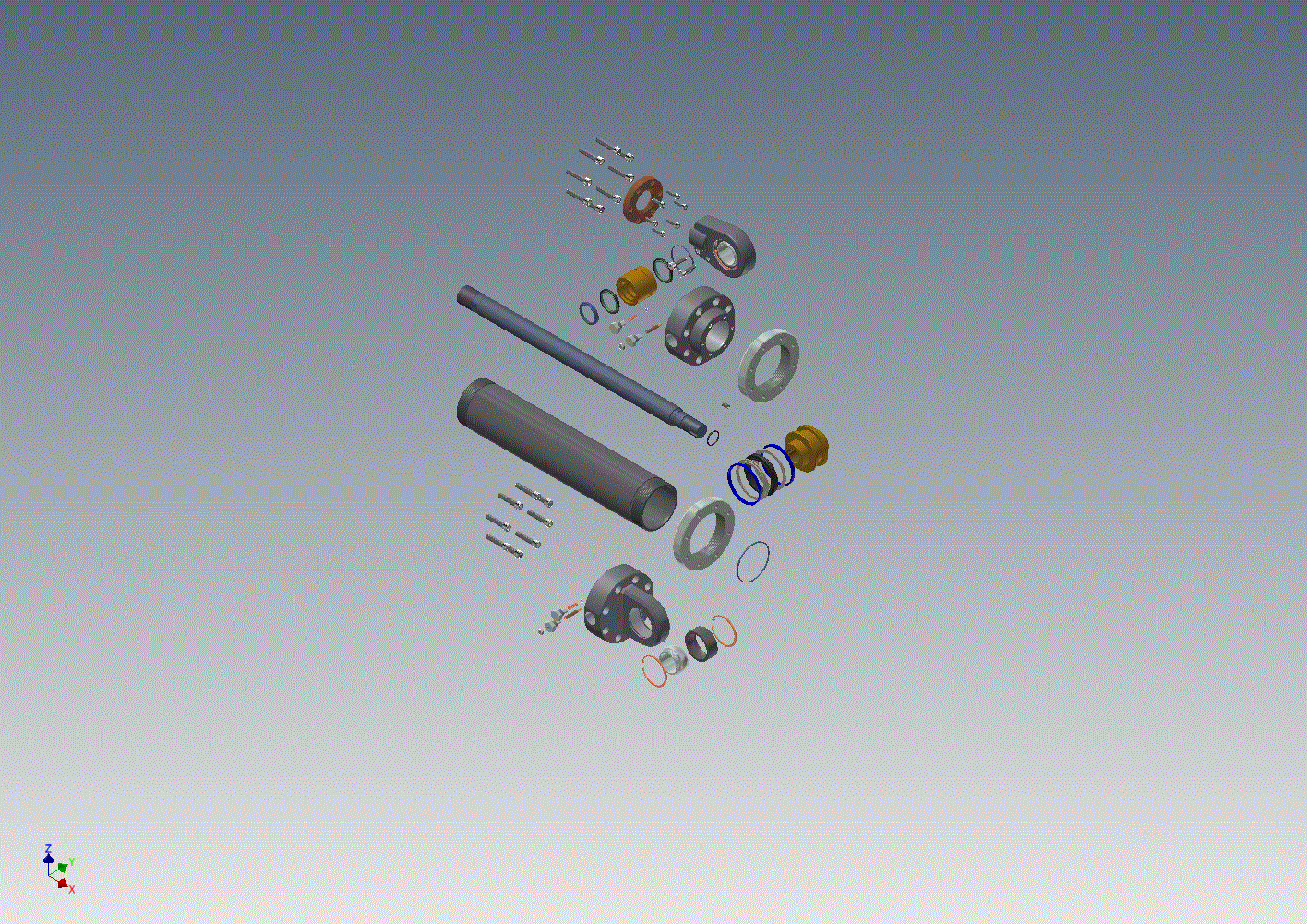

| 9 | Cylinder Assembly Animation.gif | 338 KB |
| 10 | Cylinder Assembly Animation.ipn | 154 KB |
| 11 | Cylinder Assembly Animation.wmv | 4.47 MB |
| 12 | Cylinder Assembly.iam | 75 KB |
| 13 | Cylinder Assy.stl | 9.34 MB |
| 14 | Cylinder Assy.stp | 1.17 MB |
| 15 | Cylinder Rendering 01.bmp | 900 KB |
| 16 | Cylinder Rendering 02.bmp | 900 KB |
| 17 | Cylinder Rendering 03.bmp | 900 KB |
| 18 | Cylinder Rendering 04.bmp | 900 KB |
| 19 | Cylinder Rendering 05.bmp | 900 KB |
| 20 | Cylinder Rendering 06.bmp | 900 KB |
| 21 | Cylinder Rendering 07.bmp | 900 KB |
| 22 | Cylinder Rendering 08.bmp | 900 KB |
| 23 | Cylinder Rendering 09.bmp | 900 KB |
| 24 | Cylinder Slideshow (Slow).gif | 435 KB |
| 25 | Cylinder Slideshow Small.gif | 148 KB |
| 26 | Cylinder Slideshow.gif | 435 KB |
| 27 | Cylinder Unit -SA L1.iam | 115 KB |
| 28 | Cylinder Unit Assembly -Rendering A.bmp | 2.25 MB |
| 29 | Cylinder.ipt | 132 KB |
| 30 | Cylinder.rar | 9.11 MB |
| 31 | DIN 472 75x2.5.ipt | 97 KB |
| 32 | End Cap -SA L2.iam | 81.5 KB |
| 33 | End Cap Fabrication_Welds.ipt | 108 KB |
| 34 | End Cap.ipt | 310 KB |
| 35 | Endcap Clevis.ipt | 166 KB |
| 36 | Flange Nut.ipt | 128 KB |
| 37 | Gland Follower -SA L2.iam | 84 KB |
| 38 | Gland Follower Retainer.ipt | 143 KB |
| 39 | Gland Follower.ipt | 201 KB |
| 40 | Gland Housing.ipt | 408 KB |
| 41 | ISO 4026 M10 x 16.ipt | 122 KB |
| 42 | ISO 4032 M8.ipt | 122 KB |
| 43 | ISO 4762 M10 x 35.ipt | 121 KB |
| 44 | ISO 4762 M12 x 55.ipt | 119 KB |
| 45 | ISO 4762 M8 x 25.ipt | 124 KB |
| 46 | Locking Ring.ipt | 87.5 KB |
| 47 | Piston Shaft.ipt | 174 KB |
| 48 | Piston Unit- SA L1 -Animation.ipn | 51.5 KB |
| 49 | Piston Unit- SA L1.iam | 81 KB |
| 50 | Piston.ipt | 232 KB |
| 51 | Rod End GIHR-K 50 DO -SA L2.iam | 81 KB |
| 52 | Rod End GIHR-K 50 DO.ipt | 409 KB |
| 53 | Seal.ipt | 136 KB |
| 54 | Section View.bmp | 17.2 MB |
| 55 | Spherical Bearing (Plain) GE50 UK-2RS - L2 SA.iam | 71.5 KB |
| 56 | Spherical Bearing (Plain) GE50 UK-2RS Inner.ipt | 144 KB |
| 57 | Spherical Bearing (Plain) GE50 UK-2RS Outer.ipt | 144 KB |
| 58 | Turcon Stepseal RSK300450 O-Ring.ipt | 121 KB |
| 59 | Turcon Stepseal RSK300450.ipt | 169 KB |
| 60 | WRM Scaper Seal - WAP100450.ipt | 116 KB |
| 61 | Wear Ring.ipt | 95.5 KB |
| 62 | Ø37xØ3 O-Ring.ipt | 148 KB |
| 63 | Ø65xØ3 O-Ring.ipt | 113 KB |
| 64 | Ø95xØ3 O-Ring.ipt | 111 KB |
免责申明:
本网站模型由用户自行上传，如权利人发现存在误传其作品情形，请及时与本站联系。
立即下载
此图纸下载需要10金币
图纸ID：706610
文件大小：61.52M
软件版本：STL,STP,INVENTOR
图纸格式：ipt,stl
参数/编辑：可修改，包括参数
上传时间：2025-03-24
