公制合金钢六角平头螺钉（ID:813649）
10
0
0
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | M2 Nut - Black.stp | 2.78 MB |
| 2 | M2 Washer - 4.5 x 0.6 - Black.stp | 7.22 KB |
| 3 | M2 x 12 - Hex Flat Head - Black.stp | 1.16 MB |
| 4 | M2 x 16 - Hex Flat Head - Black.stp | 1.43 MB |
| 5 | M2 x 20 - Hex Flat Head - Black.stp | 1.69 MB |
| 6 | M2 x 8 - Hex Flat Head - Black.stp | 914 KB |
| 7 | M3 Nut - Black.stp | 1.99 MB |
| 8 | M3 Washer - 7.0 x 0.7 - Black.stp | 7.23 KB |
| 9 | M3 x 12 - Hex Flat Head - Black.stp | 862 KB |
| 10 | M3 x 16 - Hex Flat Head - Black.stp | 1 MB |
| 11 | M3 x 20 - Hex Flat Head - Black.stp | 1.16 MB |
| 12 | M3 x 25 - Hex Flat Head - Black.stp | 1.35 MB |
| 13 | M3 x 30 - Hex Flat Head - Black.stp | 1.55 MB |
| 14 | M3 x 40 - Hex Flat Head - Black.stp | 1.94 MB |
| 15 | M3 x 8 - Hex Flat Head - Black.stp | 708 KB |
| 16 | M4 Nut - Black.stp | 2.02 MB |
| 17 | M4 Washer - 9.0 x 0.9 - Black.stp | 7.23 KB |
| 18 | M4 x 12 - Hex Flat Head - Black.stp | 911 KB |
| 19 | M4 x 16 - Hex Flat Head - Black.stp | 1.07 MB |
| 20 | M4 x 20 - Hex Flat Head - Black.stp | 1.26 MB |
| 21 | M4 x 8 - Hex Flat Head - Black.stp | 716 KB |
| 22 | M5 Nut - Black.stp | 1.91 MB |
| 23 | M5 Washer - 10.0 x 1.1 - Black.stp | 7.23 KB |
| 24 | M5 x 12 - Hex Flat Head - Black.stp | 833 KB |
| 25 | M5 x 16 - Hex Flat Head - Black.stp | 1010 KB |
| 26 | M5 x 20 - Hex Flat Head - Black.stp | 1.14 MB |
| 27 | M5 x 8 - Hex Flat Head - Black.stp | 667 KB |

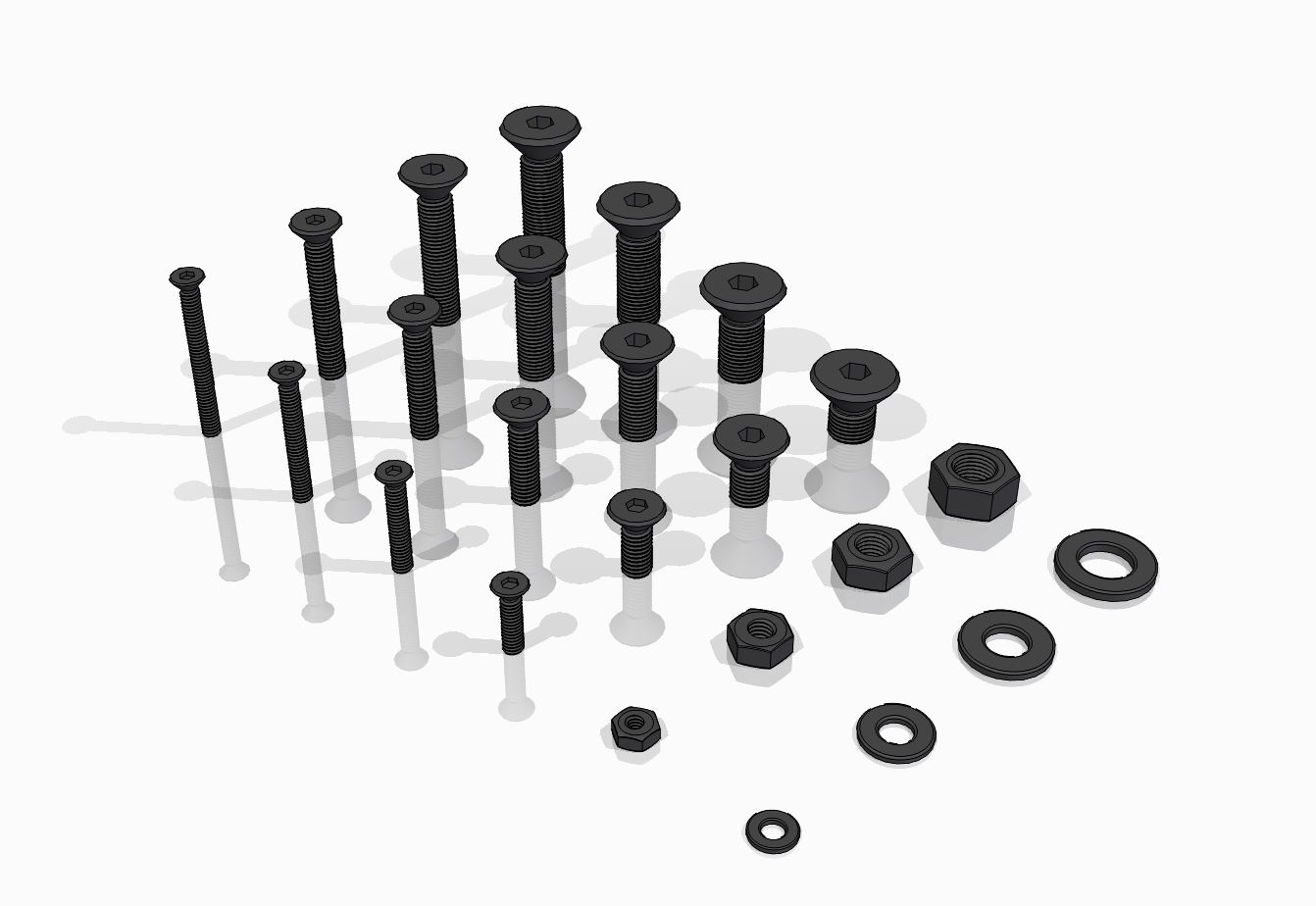

| 28 | Metric Screw Set.JPG | 86.2 KB |
免责申明:
本网站模型由用户自行上传，如权利人发现存在误传其作品情形，请及时与本站联系。
立即下载
此图纸下载需要10金币
图纸ID：813649
文件大小：30.75M
软件版本：STP
参数/编辑：可修改，包括参数
上传时间：2025-08-05
图纸介绍：
