万向旋转驱动轮结构模型（ID:816038）

机械设备 / 钢结构支架 / 万向旋转驱动轮结构模型

平面图

3D视图

文件列表

屿双网

#	文件名称	文件大小
1	0.5 Hex Bearing (Vex 217-3875).SLDPRT	107 KB
2	1755685536561308.rar	51.1 MB
3	91253A022_ALLOY STEEL FLAT-HEAD SOCKET CAP SCREW.SLDPRT	1.62 MB
4	92510A673_ALUM UNTHRD SPACER.SLDPRT	152 KB
5	93738A190_BARBED INSERTS FOR PLASTIC.SLDPRT	602 KB
6	98410A122_EXTERNAL RETAINING RING.SLDPRT	115 KB
7	Bearing, .375 ThunderHex, Flanged, 217-5829.sldprt	16.8 KB
8	Bearing, 688.sldprt	17.6 KB
9	Bearing, A035XPO_SA035XPO.sldprt	63 KB
10	Bearing, F689-ZZ.sldprt	14.8 KB
11	Bearing, FR8, am-0030, 217-3875.sldprt	56.5 KB
12	Bearing, R188ZZ, 217-3489.sldprt	15.4 KB
13	Bearing, am-0573, 217-2732.sldprt	16.6 KB
14	Belt, 320-5M-09.sldprt	17.3 KB
15	Drive Motor With Spacer.SLDASM	1.18 MB
16	Encoder, US Digital MA3-X-250-N, Nut.sldprt	63.1 KB
17	Gear, 20DP, 14T, 8mm Key Bore, Steel, 217-3414.sldprt	75.7 KB
18	Gear, 20DP, 18T, .375Hex, 217-3208.sldprt	101 KB
19	Gear, 20DP, 26T, .375Hex, 217-5453.sldprt	146 KB
20	Gear, 20DP, 42T, .375Hex, 217-3215.sldprt	146 KB
21	Gear, 32DP, 45T, .375Hex, am-3694.sldprt	84.8 KB
22	Gear, 32DP, 47T, Encoder Drive(Default).sldprt	110 KB
23	Gear, 32DP, 8mm, am-3482.sldprt	36.4 KB
24	Gear, Bevel, KSB1.5-1560, .375Hex, Shortened.sldprt	408 KB
25	Gear, Bevel, KSB1.5-6015, VersaHub(Default).sldprt	3.26 MB
26	MK2 Center Shaft V2.sldprt	30.9 KB

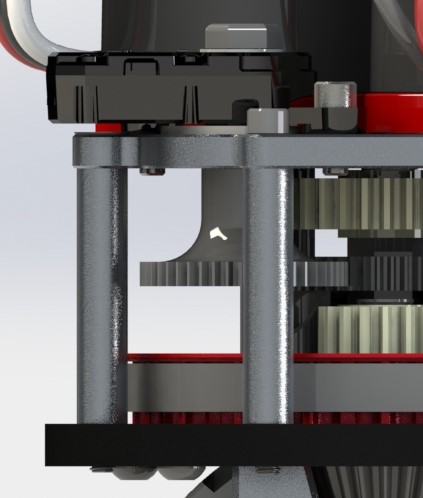

27	MK2 Encoder.JPG	61.7 KB
28	MK2 Intermediate Shaft.sldprt	24.8 KB
29	MK2 Main Plate no counterbore(With Chamfers).sldprt	178 KB
30	MK2 Main Plate with Encoder Modification.SLDPRT	851 KB
31	MK2 Main Pulley.sldprt	179 KB
32	MK2 Steering Shaft Assembly.SLDASM	104 KB
33	MK2 Steering Shaft V3, Pulley Flange.sldprt	26.3 KB
34	MK2 Steering Shaft V3.sldprt	56.3 KB

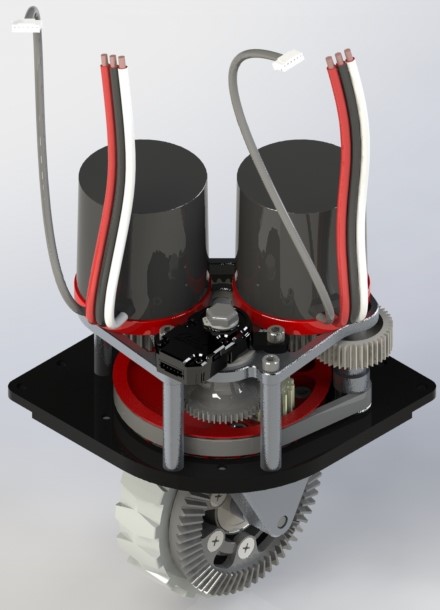

35	MK2.JPG	66.8 KB
36	Modified Gear, 32DP, 47T, Encoder(Default).sldprt	419 KB
37	Motor Shaft Spacer.SLDPRT	149 KB
38	Motor Spacer Drive.SLDPRT	248 KB
39	Motor Spacer.SLDPRT	249 KB
40	Motor with spacer.SLDASM	1.16 MB
41	NEO (REV-21-1650).SLDPRT	615 KB
42	REV-11-1271.SLDASM	4.92 MB
43	REV-11-1271.STEP	9.55 MB
44	REV-21-1650(1).STEP	937 KB
45	Retaining Ring, 8mm, 98430A132.sldprt	60.6 KB
46	SDS MK2 Swerve Module.SLDASM	22.4 MB
47	SDS MK2 Swerve Module.STEP	44.2 MB
48	Screw, #12-14 X 1.5, Flat, Thread Forming.sldprt	82 KB
49	Screw, .25-20 X .75, Socket, 91251A540.sldprt	39.2 KB
50	Screw, .25-20 X 1 Socket, 91251A542.sldprt	42.8 KB
51	Screw, 10-32 X .25, Button, 91255A261.sldprt	33.7 KB
52	Screw, 10-32 X .375, 91251A340.sldprt	35.8 KB
53	Screw, 10-32 X 2.5, 91251A355.sldprt	53.7 KB
54	Screw, 12-24 X .625, Flat, 91253A282.sldprt	42.2 KB
55	Screw, 4-40 X .375, Flat, Torx, 92703A209.sldprt	60.8 KB
56	Screw, Shoulder, .375 X 2.5, 5_16-18, 91259A634.sldprt	125 KB
57	Shim, 8mm ID X 14mm OD X .5mm Thick, 98055A115.sldprt	15.6 KB
58	Spacer, #10 X 1.875, .3125 OD, 92510A554.sldprt	25.2 KB
59	Wheel Mount A(Default).sldprt	40.3 KB
60	Wheel Mount B(Default).sldprt	41 KB
61	Wheel Spacer.sldprt	25.3 KB
62	Wheel, Versa, 4in, DT, 217-3197, Modified.sldprt	1.54 MB
