RC helicopter遥控直升机（ID:837436）
11
0
0
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 1.SLDPRT | 138 KB |
| 2 | 1.helicopter blade 2.SLDPRT | 155 KB |
| 3 | 1.helicopter blade.SLDPRT | 127 KB |
| 4 | 10.1 shaft 03.SLDPRT | 33.4 KB |
| 5 | 10.2 shaft 04.SLDPRT | 36.9 KB |
| 6 | 13. h motor 1.SLDPRT | 83.2 KB |
| 7 | 13. h motor 2.SLDPRT | 83.4 KB |
| 8 | 14. motors holder housing.SLDPRT | 184 KB |
| 9 | 14.PNG | 88.2 KB |
| 10 | 15.gear 1.SLDPRT | 468 KB |
| 11 | 16.gear 2.SLDPRT | 491 KB |
| 12 | 17.gear 3.SLDPRT | 97.5 KB |
| 13 | 18 bearing.SLDPRT | 576 KB |
| 14 | 19.braring holder.SLDPRT | 97.7 KB |

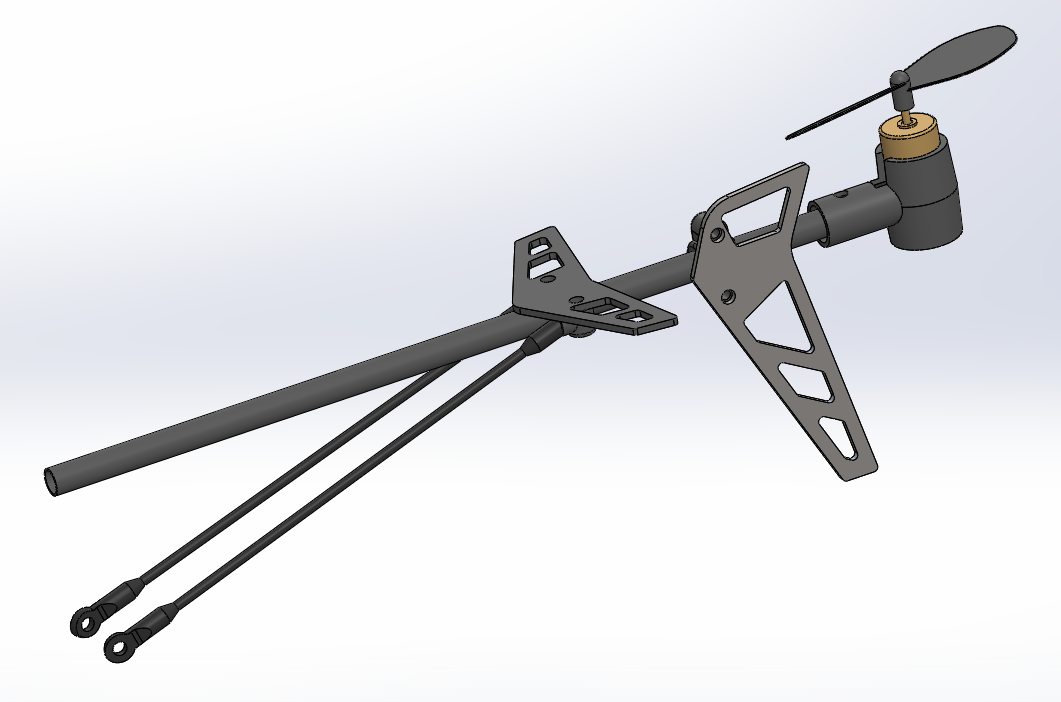

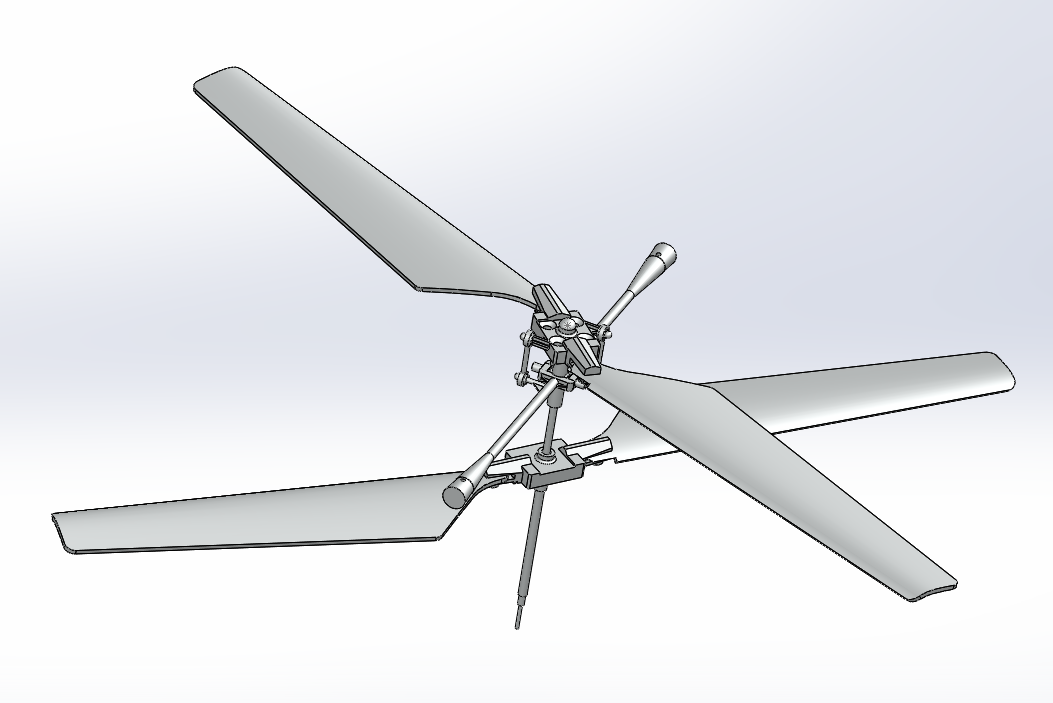

| 15 | 1st assumble.PNG | 134 KB |
| 16 | 2.PNG | 144 KB |
| 17 | 2.blades.SLDPRT | 347 KB |
| 18 | 21. chassis frame support 1.SLDPRT | 122 KB |
| 19 | 22. chassis frame support2-buttom.SLDPRT | 248 KB |
| 20 | 23. landing arm.SLDPRT | 154 KB |
| 21 | 24.landing leg.SLDPRT | 61.8 KB |
| 22 | 25.battery.SLDPRT | 133 KB |
| 23 | 26. pcb electronic circuit.SLDPRT | 109 KB |
| 24 | 27. charger socket.SLDPRT | 121 KB |
| 25 | 29.chassis support panel 1.SLDPRT | 178 KB |

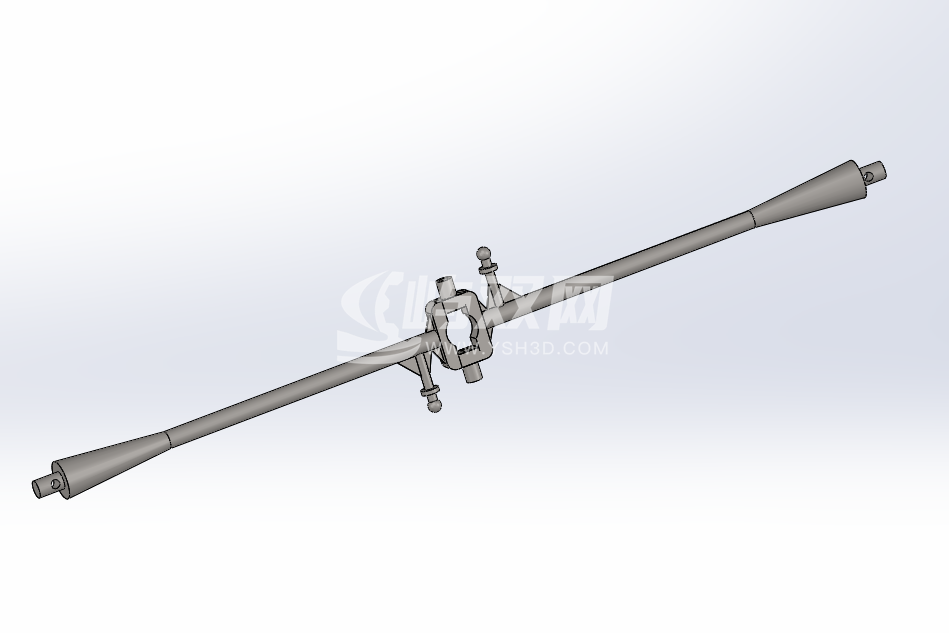

| 26 | 3.PNG | 83.6 KB |
| 27 | 3.blade stabiliser.SLDPRT | 149 KB |
| 28 | 30. chassis support panel 2.SLDPRT | 187 KB |
| 29 | 31.panels spacer.SLDPRT | 80.7 KB |
| 30 | 32. tail connector.SLDPRT | 96.5 KB |
| 31 | 34.tail shaft.SLDPRT | 44 KB |
| 32 | 35.back motor-tal motor.SLDPRT | 84.6 KB |
| 33 | 36. back motor holder housing.SLDPRT | 112 KB |
| 34 | 37. back propellel.SLDPRT | 146 KB |

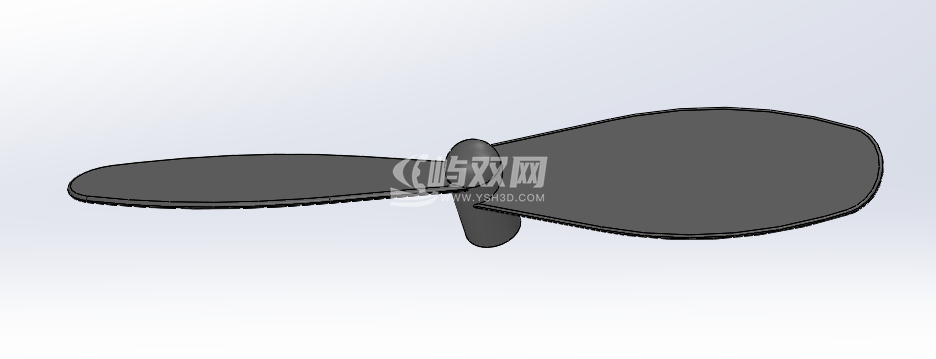

| 35 | 37.PNG | 43.1 KB |
| 36 | 38. fin slide wing.SLDPRT | 136 KB |
| 37 | 39. fin mount holder.SLDPRT | 141 KB |
| 38 | 4. stabeliser.SLDPRT | 98.5 KB |
| 39 | 40.black wing.SLDPRT | 126 KB |
| 40 | 41.back wing mount.SLDPRT | 178 KB |
| 41 | 42.back rod.SLDPRT | 75.2 KB |
| 42 | 44-48 h body.SLDPRT | 84.7 KB |
| 43 | 47 the front panel.SLDPRT | 190 KB |
| 44 | 48 body.SLDPRT | 594 KB |

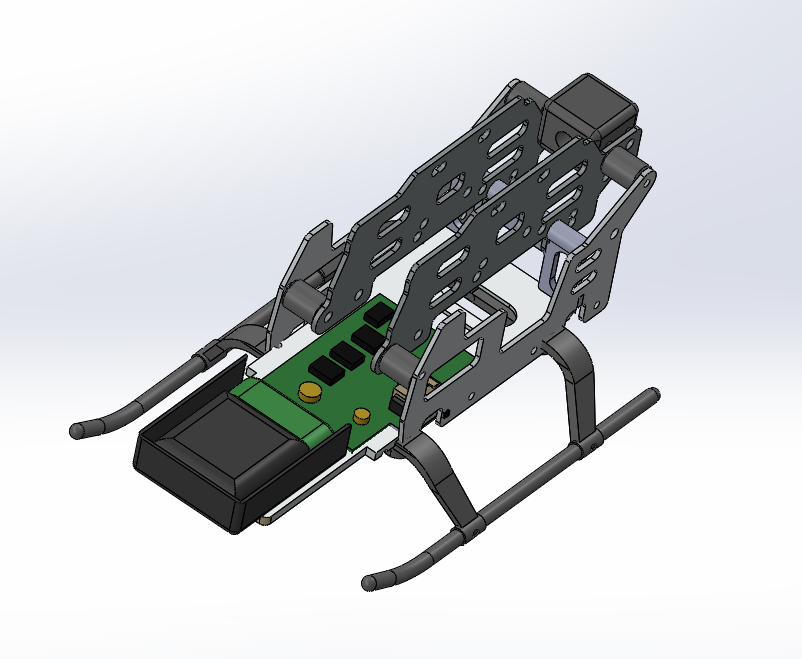

| 45 | 4th assumblem.PNG | 123 KB |
| 46 | 5.balance weight for blades stabeliser.SLDPRT | 77.8 KB |
| 47 | 5th assumblem.PNG | 119 KB |
| 48 | 7. blade header 2.SLDPRT | 185 KB |
| 49 | 8. shaft 01.SLDPRT | 46.7 KB |
| 50 | 9.shaft 02.SLDPRT | 110 KB |
| 51 | Assem 2.SLDASM | 911 KB |
| 52 | Assem 2.SLDASM | 913 KB |
| 53 | Assem 3.SLDASM | 224 KB |
| 54 | Assem 4th.SLDASM | 323 KB |
| 55 | Assem 4th.SLDASM | 348 KB |
| 56 | Assem fin.SLDASM | 4.29 MB |
| 57 | Assem.SLDASM | 71.7 KB |
| 58 | Assem1 st.SLDASM | 270 KB |
| 59 | Assem1 st.SLDASM | 271 KB |
| 60 | Assem1.SLDASM | 416 KB |

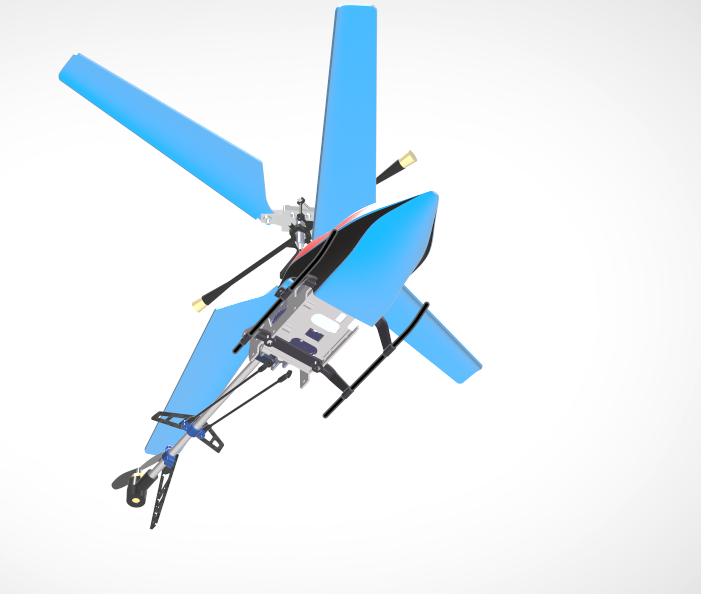

| 61 | Capture.......PNG | 150 KB |
| 62 | Part.SLDPRT | 36.7 KB |
| 63 | Part1.SLDPRT | 37.9 KB |
| 64 | assumbly 5th.SLDASM | 281 KB |
| 65 | assumbly 5th.bip | 1020 KB |
| 66 | final assumble done.SLDASM | 1.8 MB |
| 67 | final assumble.PNG | 142 KB |
| 68 | final assumble.SLDASM | 1.47 MB |
| 69 | 免责声明.txt | 1.67 KB |
| 70 | 海量3D模型CAD图纸下载.url | 177 B |
免责申明:
本网站模型由用户自行上传，如权利人发现存在误传其作品情形，请及时与本站联系。
免费下载
此图纸可免费下载
图纸ID：837436
文件大小：19.71M
软件版本：SOLIDWORKS 2018
图纸格式：sldprt,sldasm
参数/编辑：可修改，包括参数
上传时间：2025-12-03
